Product Features

Ada mix barrel mixers are designed
and manufactured for mixing,
homogenization and coloring processes of products in barrels.

Catalog

Technical Specifications

  • 1.3 kW ex-proof air motor (Ex II GD c T4)
  • Adjustable mixing speed 0-2000 rpm
  • Gear reducer 1:5, 1:7, 1:10
  • Max torque: 31, 44, 63 Nm (7 Bar)
  • Max. rpm: 600, 430, 300 rpm
  • Stepless speed regulation
  • Stainless steel mixer shaft and impeller (AISI 304)
  • Dual propeller option

Operational Features

  • Working viscosity max. 2500 cPoise

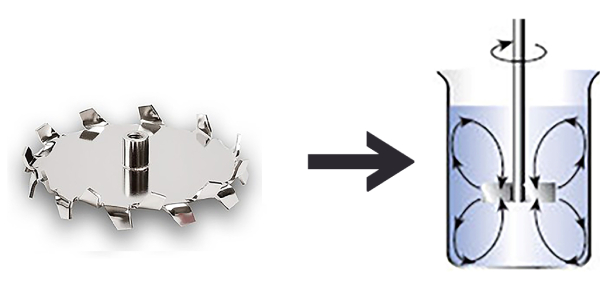

Propeller Options

  • Blade
  • Marine-type
  • Toothed Disc
